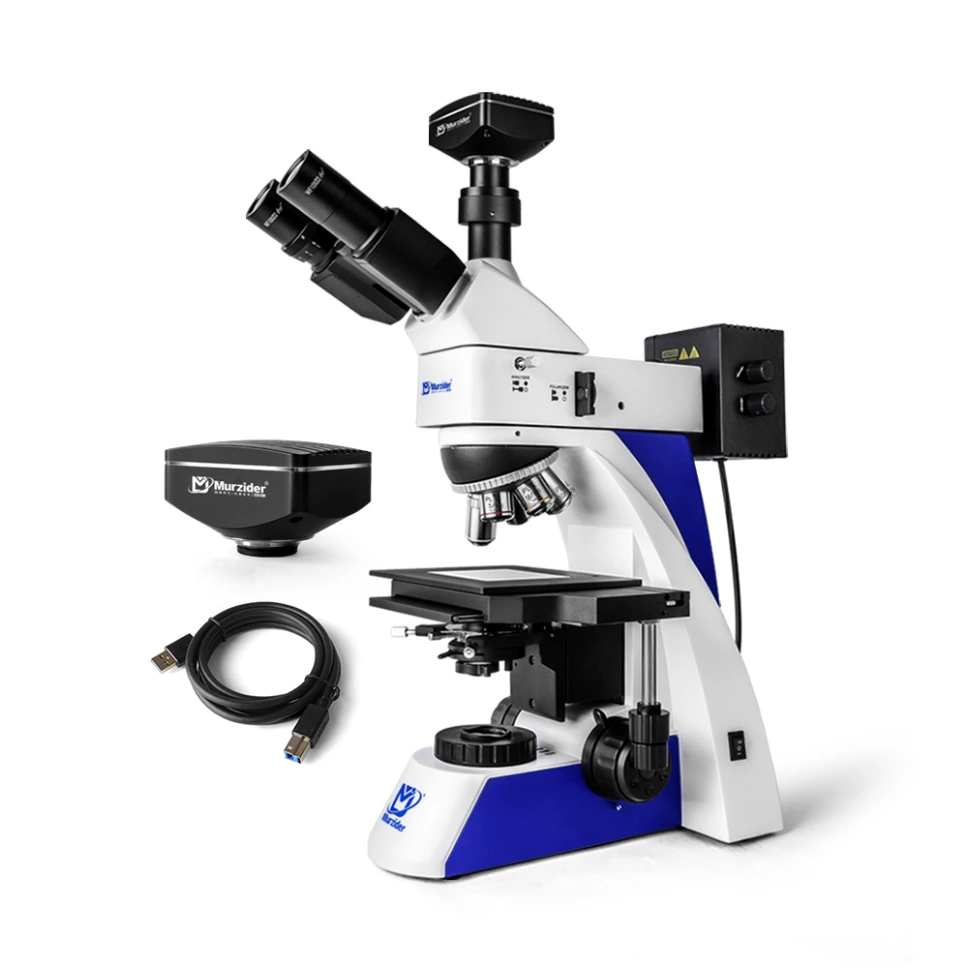

1. Optical system: Infinity optical system.
2. Total magnification: 50X-800X.
3. Eyepiece: Wide field plan eyepiece WF10X (Φ23mm).
4. Objective: Infinity plan achromatic objective 5X/10X/20X/40X/80X.
5. Observation head: Hinged, inclined 30°, rotatable 360°, trinocular head.
6. Nosepiece: Five-hole (inward-facing ball positioning).
7. Stage: Double-layer mechanical movable, size: 210mm×140mm, travel: 80×50mm.
8. Illumination system: 3W high-brightness LED for reflected light, 3W high-brightness LED for transmitted light.
9. Camera: MSD-2000
10. Resolution: 20 million pixels
11. Sensor size: 1" inches
Pakage :
- 1pcs/ctn 520X325X750mm
- GW：13.2kg
